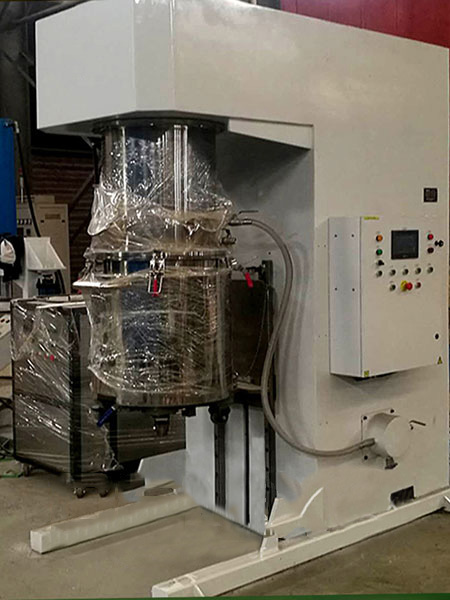

Vertical Kneader Technical Data
| Model | Volume(L） | Central Kneading Blade (RPM) | Rotating Kneading Blade (RPM) | Drive Power(KW) |
| JCT VK 1 | 0.5 | 2.3-23 | 10.4-104 | 0.12 |
| JCT VK 5 | 2.5 | 1.6-16 | 8.8-88 | 0.37 |
| JCT VK 25 | 12.5 | 1.5-15 | 7.8-88 | 1.5 |
| JCT VK 50 | 25 | 2-16 | 8-64 | 2.2 |
| JCT VK 100 | 50 | 1.5-14 | 6-56 | 4 |
| JCT VK 200 | 100 | 1.3-11 | 6.5-56 | 5.5 |
| JCT VK 400 | 200 | 1.5-12 | 6-48 | 11 |
| JCT VK 800 | 400 | 1.2-9 | 6.5-49 | 18.5 |
| JCT VK 1600 | 800 | 0.9-9 | 4.2-42 | 45 |
| JCT VK 3200 | 1600 | 1-9 | 4-36 | 75 |
◪ Intensive kneading and dispersion of high viscosity products.
◪ Reduce processing time and improve product quality.
◪ Kneading blades continuously variable speed.
◪ All seals are located above the product and are non-contact.
◪ Stir and knead repeatedly without any dead ends.
◪ Dental compounds (plastic or ceramic)
◪ Industrial ceramics
◪ Medicine and cosmetics
◪ Lubricating oil
◪ Color masterbatch (ink)
◪ Battery compounds
We are professional mixing manufacturer, providing sigma mixer, reactor, dual shaft mixer, etc .
