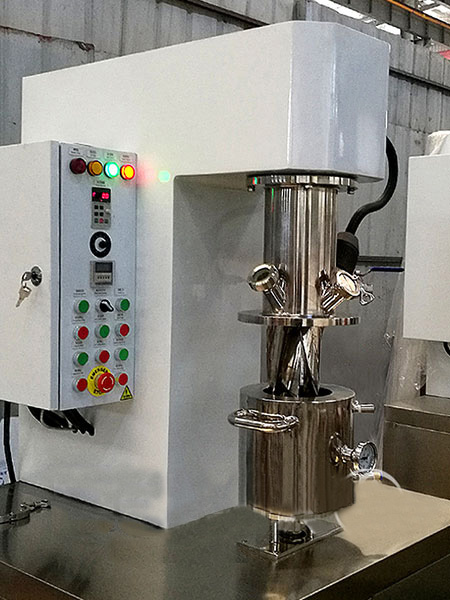

Vertical Kneader processes semi-dry or rubber-like viscous plastic materials and high-viscosity elastic materials through the strong shearing action generated by the mutual cooperation and rotation of a pair of vertical blades. The two sets of blades of the vertical kneader perform planetary motion at different speeds in a closed container. They have a large contact surface with the material, and the gap between the blades and the tank wall is about 2~3mm. They rotate and scrub the entire wall of the container without dead ends, uniformly mixing, kneading, and Crushed, dispersed and reassembled into a variety of chemical products. Vertical Kneader has the advantages of even mixing, no dead ends and high kneading efficiency. For the temperature requirements of the material, supporting the appropriate temperature control system, independent operation, high control accuracy.
Planetary Mixer machine is suitable for mixing lithium battery slurry, a variety of adhesive and new energy material. It has high mixing efficiency and uniformity which is developed on the base of dual shaft mixer machine. It is composed of low speed mixer, high speed disperser, scraping wall scraping bottom and temperature measuring probe, etc. It has the advantages of rapid mixing, reaction, dispersing, dissolving and kneading. At the same time the scarper is scraping the inner tank wall and bottom, to make sure no dead corners, no residue, and be easy to clean.
Considerations
| Vertical Kneader | Planetary Mixer | |
| Material Type | High viscosity material | Suitable for wide ranges viscosity materials, depending on agitators |
| Mixing Actions | Kneading and shearing | Versatile mixing, beating and whipping |
| Applications | Candy, baking, pharmaceuticals, cosmetics, etc | Food processing, baking, lab research, etc |
