Different Types Of Silicone Sealant Filling Machine | JCT Machinery

August 26, 2024

filling machine

What Is Metering Cylinder?

1. Suction: When metering cylinder is in the suction state, the piston in the cylinder moves backward, generating negative pressure, sucking the material from the hopper or storage tank into the metering cylinder.
2. Quantitative: The piston movement distance of the metering cylinder and the volume of the cylinder body jointly determine the amount of material sucked each time. By adjusting the stroke of the piston, the amount of material suched each time can be accurately controlled, thereby achieving quantitative control.
3. Filling: During the filling stage, the piston moves forward to press the material in the metering cylinder out and enter the packaging container through the filling head.

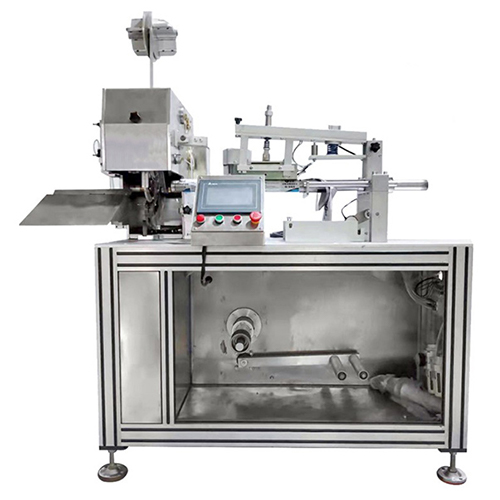

no metering cylinder filling machine

No Metering Cylinder Silicone Sealant Filling Machine

1. Working Principle: Silicone sealant filling machine without metering cylinder usually directly convey materials through screws or gear pumps, and rely on external control systems (such as time, flow sensors, etc.) to control the filling volume.
2. Advantages: Simple structure, low manufacturing and maintenance costs, suitable for occasions with low filling requirements.
3. Disadvantages: The filling accuracy is relatively low, which is greatly affected by the change of material viscosity, and is suitable for small batches or filling tasks with low precision requirements.

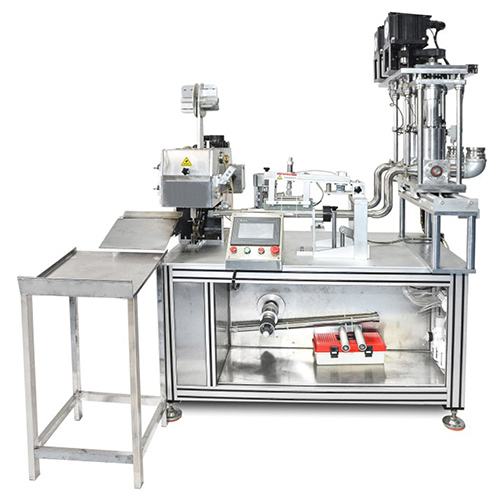

double metering cylinder filling machine

Double Metering Cylinder Silicone Sealant Filling Machine

1. Working Principle: Double metering cylinder silicone sealant filling machine is equipped with two metering cylinders, which can work alternately. When one cylinder is filling, the other is sucking and preparing, which improves work efficiency while maintaining continuous filling.
2. Advantages: High filling accuracy and high efficiency, suitable for medium-volume production needs. The design of two cylinders can reduce the pause time during the filling process.
3. Disadvantages: Relatively complex structure, high manufacturing and maintenance costs, and a more precise control system is required to coordinate the work of two cylinders.

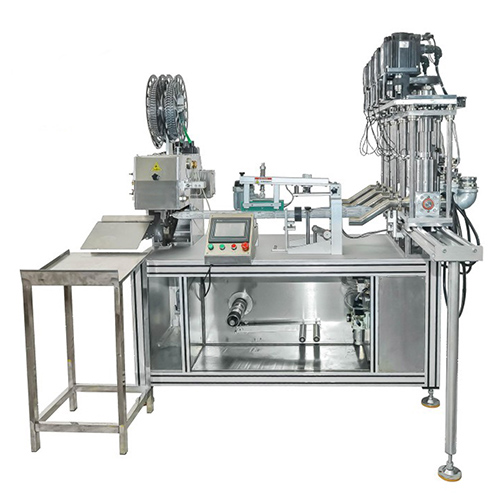

four metering cylinder filling machine

Four Metering Cylinder Silicone Sealant Filling Machine

1. Working Principle: Four metering cylinder filling machine can perform filling operations simultaneously or alternately. Four-cylinder design can greatly improve the filling efficiency and is suitable for high-volume production needs.
2. Advantages: High filling accuracy, greatly improved production capacity and able to handle large-volume production needs. Suitable for large production lines or continuous filling operating environments.
3. Disadvantages: More complex structure, higher cost, large equipment footprint, and higher requirements for operators and maintenance personnel.
