How are manufacture Acidic Silicone Seanalnt | JCT Machinery

Acid silicone sealant is a synthetic resin-based silicone sealant with acidic properties. This sealant is easy to handle at room temperature, but when exposed to moisture in the air, an acidic catalyst kicks in, causing the sealant to begin to cure and harden.Acidic silicone sealants are commonly used in sealing, caulking, adhesive and insulating applications in construction, home, industrial and automotive applications.

Process Step:

·Raw material preparation

·Mixing and Preprocessing

·Heating

·Cooling and solidify

·Filling and Packaging

·Quality Control

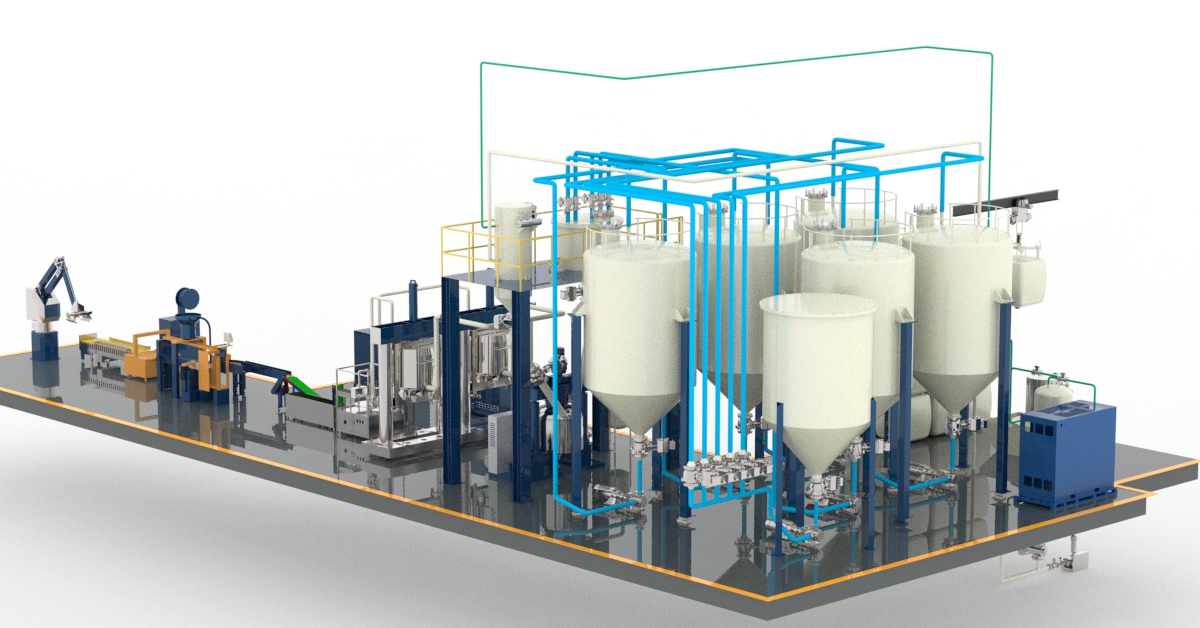

Equipment List

·Raw Material Storage System

·Collecter

·Liquid Material Storage Tank

·Powdery

·Material Storage Tank

·Transfer Tank

·Shaft Mixer

·Hydraulic Press Machine

·Cartidge Packaging Line

·Chiller System

Advantages of Production Line

·High Efficiency

·Improve Safety

·Reduce Costs

·Precise Recipe Control

·Flexible

·Increase Production and Capacity

SEND INQUIRY NOW

Product Details

Acidic Silicone Sealant Manufacturing Process

Raw Material Preparation

Prepare the main raw materials for acidic silicone sealant to ensure the quality and purity of the raw materials.

Mixing and Preprocessing

The raw materials are accurately weighed according to the specific recipe and fed into the mixer. In the mixer, the raw materials are stirred and mixed to ensure even distribution.

Heating

Send the mixed raw materials into the reaction kettle. In the reactor, the raw materials are heated and reacted, usually at high temperatures, to promote the reaction of the silicone resin with the acidic catalyst to form a silicone sealant.

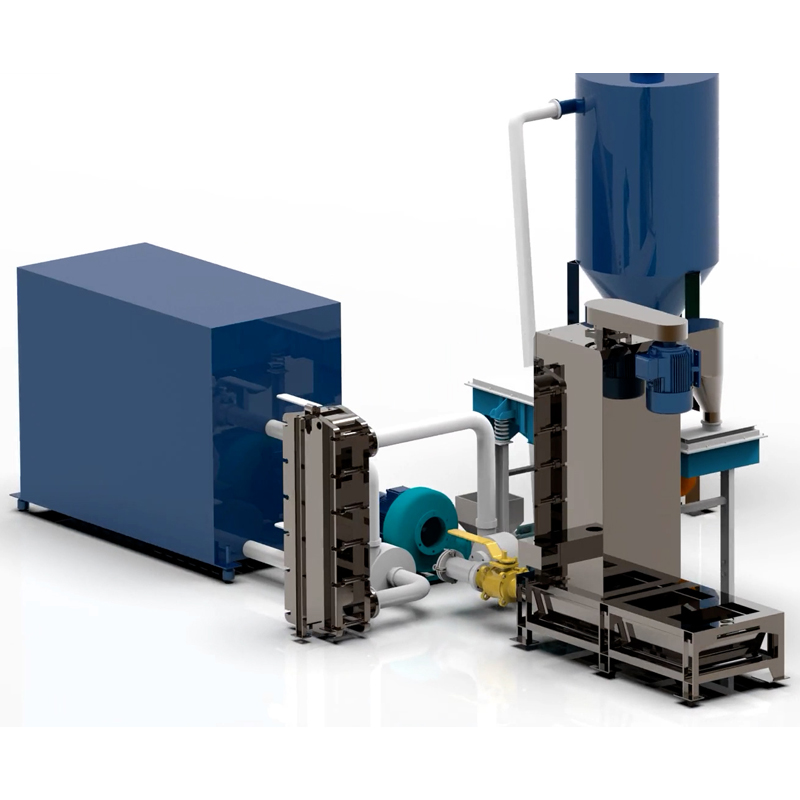

Cooling and Solidify

After the heating reaction is complete, cool the silicone sealant to room temperature. During this process, the sealant begins to cure but may take longer to fully cure, depending on the type and formulation of the product.

Filling and Packaging

The cured acidic silicone sealant is fed into the filling machine to fill pipes, pipe heads or packaging containers. During this process, ensure that the packaging of the sealant is sterile and sealed to prevent impurities and contamination.

Quality Control

Strict quality control testing is performed, including physical property testing, color determination, viscosity testing, rheology testing, etc. to ensure products meet specifications.

JCT Machinery was established in 2006 at Foshan China that specializes in design, manufacture, and supply of various industrial machinery and equipment, We offer a wide range of machinery for industries such as chemical, pharmaceutical, food processing, and cosmetics.

We have developed and designed cases with multiple partners around the world, our mission is focusing on providing reliable and efficient equipment for industrial processes.Taking a reputation for quality manufacturing, customization options, and excellent after-sales support is one of our goals.
