Sigma Mixer working principle and features | JCT Machinery

October 31, 2023
Sigma Mixer working principle:

Sigma Mixer is composed of five major parts: the mixing part, the base part, the hydraulic system, the transmission system and the electronic control system. The hydraulic system uses a hydraulic station to control the large oil cylinder to complete the opening and closing function. The hydraulic system uses a hydraulic station to control the oil cylinder to complete functions such as turning over the cylinder and opening the cover. The detailed parameters can be selected by the user at will. The operation is convenient and reliable. The transmission system consists of a motor, a reducer and a gear. The motor is matched according to the model of Sigma Mixer.

The sigma mixer has two Σ-shaped blades. The speeds of the two blades are different. Different speeds can be set according to different processes. The common speed ratio is 3:2.

sigma mixer blade

Sigma Mixer can be designed in heating or non-heating form according to requirements. The heat exchange methods usually include: electric heating, steam heating, circulating hot oil heating, and circulating water cooling.

The discharging methods of Sigma Mixer include hydraulic cylinder dumping, ball valve discharging, screw extrusion, etc. The parts of the chamber and the blades that are in contact with the material are made of stainless steel to ensure that the material is not contaminated.

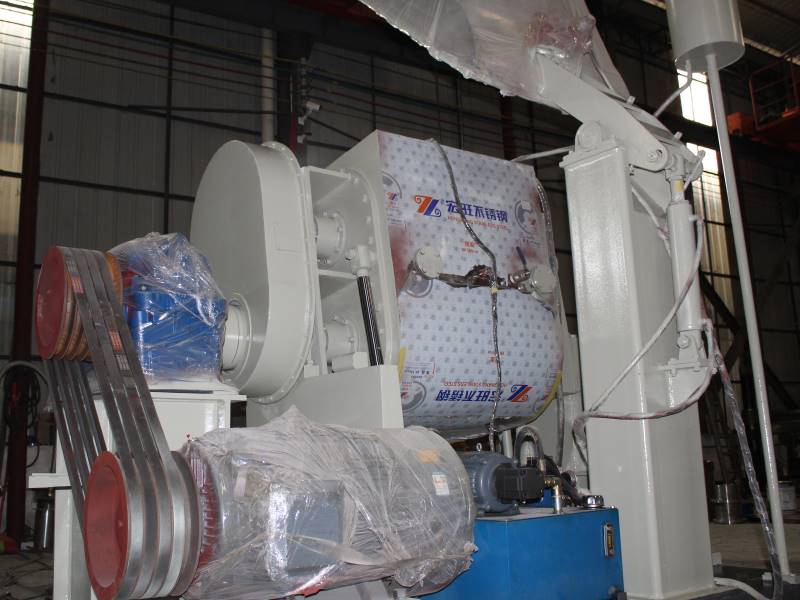

sigma mixer hydraulic

Sigma Mixer Features
  • ◪ Sigma mixer generally adopts a universal chassis for easy installation.

  •   Using helical gear or hard tooth surface reducer, the transmission with the host is stable, low noise and long life.

  •   The inner wall of the chamber and blades are made of stainless steel or stainless steel to ensure the purity of the material.

  •   The shaft seal has an advanced structure, good sealing effect, and a uniquely designed vacuum box balance structure.

  • ◪ Integrated electrical controls for easy operation and process control.
