1. Crusher
Process the raw materials and crush the cellulose raw materials (such as wood pulp and cotton pulp) into particles suitable for the reaction.

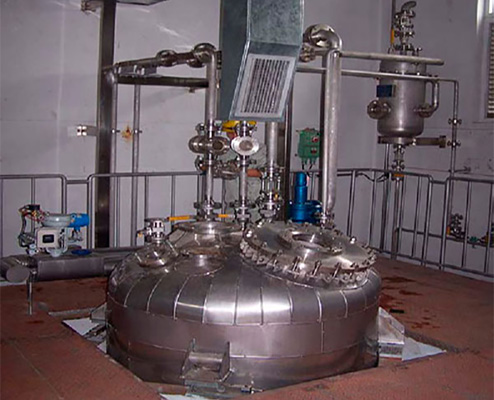

2. Reactor
Used for carboxymethylation reaction, equipped with temperature control system and stirring device to ensure uniform reaction.
3. Neutralization and Washing Equipment
Neutralization tank is used to neutralize the reaction products and remove residual alkaline substances. The washing tank is washed multiple time to remove unreacted chemicals and by-products.
4. Hot Air Dryer or Vacuum Dryer
Dry the washed CMC to remove moisture.
5. Crushing and Grading Equipment
The crusher crushes the dried CMC particles to the required particle size. Then use a grading screen to grade CMC of different particle sizes to ensure uniformity.
6. Automatic Packaging Machine
The final product is packaged, usually with moisture-proof packaging materials.
