How To Choose Double Planetary Mixer | JCT Machinery

October 30, 2024
Folding Blade
  • 1. Structural Features

  • Folding blade usually has a large contact area and are composed of multiple inclined rectangular small blades, which can effectively push materials.

  • 2. Mixing Effect

  • Suitable for mixing materials with high viscosity and high solid content, and can generates strong shear force.

  • 3. Application Area

  • Commonly used for mixing viscous materials, slurries and composite materials, and widely used in plastics, coatings, food and other industries.

Twisted Blade
  • 1. Strucrtural Features

  • Twisted blade is spiral, similar to the shape of twist, designed to enhance the fluidity of materials, and the blades are easy to clean.

  • 2. Mixing Effect

  • It has good stirring and uniform dispersion capabilities, and can effectively handle low to medium viscosity materials.

  • 3. Application Area

  • Commonly used for mixing materials with good fluidity, such as liquids, slurries and light solids, suitable for chemical, pharmaceutical and food industries.

Points to Note When Choosing Double Planetary Mixer
  • 1. Material Properties

  • Understand the viscosity, density, particle size, fluidity and other properties of the material to be mixed to select the appropriate equipment and stirring blades (such as folding blade or twisted blades).

  • 2. Capacity and Size

  • Choose the appropriate mixer capacity according to production needs, considering the floor space and installation space of the equipment.

  • 3. Drive system

  • JCT's business manager will recommend you the power and speed range of the appropriate motor to ensure that production requirements are met.

  • 4. Temperature Control System

  • If mixing is required at a specific temperature, check whether the equipment is equipped with a heating/cooling system to ensure the accuracy of temperature control.

  • 5. Material and Corrosion Resistance

  • JCT's double planetary mixer uses high quality materials (such as SS304, SS316) with good corrosion resistance and wear resistance to meet specific process requirements.

  • 6. Safety

  • JCT Machinery can be equipped with explosion-proof measures, emergency stop functions and safety protection devices to ensure safe operation.

  • 7. Maintenance and Cleaning

  • Choose a design that is easy to clean and maintain to reduce the risk of cross contamination during production.

  • 8. After-sales Service

  • JCT's double planetary mixer has a 1-year warranty, lifetime maintenance, and installation instructions will be provided. Customers can contact our engineers at any time if they have any questions.

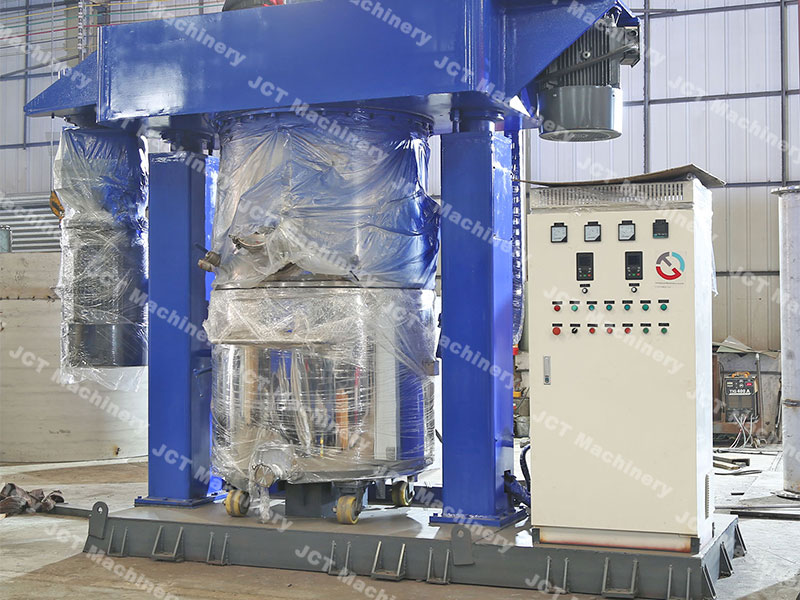

industrial planetary mixer
