JCT Machinery Vertical Kneader is a multifunctional and efficient machine designed for mixing and kneading various materials, especially high viscosity (5 million), high solid content (more than 90%), high elastic and plastic materials, such as: High viscosity sealants, plastics, rubber, etc.
SEND INQUIRY NOW
Technical Data
| Model | Volume (L) | Central Kneading Blade (RPM) | Rotating Kneading Blade(RPM) | Drive Power (KW) |
| JCT VK1 | 0.5 | 2.3-23 | 10.4-14 | 0.12 |
| JCT VK 5 | 2.5 | 1.6-16 | 8.8-88 | 0.37 |
| JCT VK 25 | 12.5 | 1.5-15 | 7.8-88 | 1.5 |
| JCT VK 50 | 25 | 2-16 | 8-64 | 2.2 |
| JCT VK 100 | 50 | 1.5-14 | 6-56 | 4 |
| JCT VK 200 | 100 | 1.3-11 | 6.5-56 | 5.5 |
| JCT VK 400 | 200 | 1.5-12 | 6-48 | 11 |
| JCT VK 800 | 400 | 1.2-9 | 6.5-49 | 18.5 |
| JCT VK 1600 | 800 | 0.9-9 | 4.2-42 | 45 |
| JCT VK 3200 | 1600 | 1-9 | 4-36 | 75 |
Rotation of Mixing Shaft: In addition to individual rotation, the kneading blades also move in a planetary motion. This means that while rotating on their own axes, the blades also move in a circular path around the central axis of the kneader. The circular path is typically larger than the diameter of the mixing chamber.
Kneading Action: As the mixing shaft rotates, the mixing elements on the shaft create a combination of mechanical forces, including shearing and impact forces. These forces continuously push, pull, stretch, and fold the materials, breaking down aggregates and promoting thorough mixing. The vertical design allows for effective material movement within the chamber.
Vertical Kneader Applications

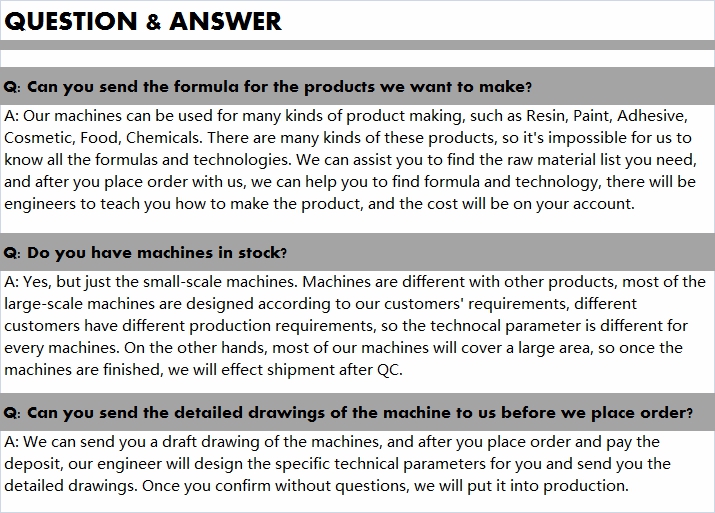

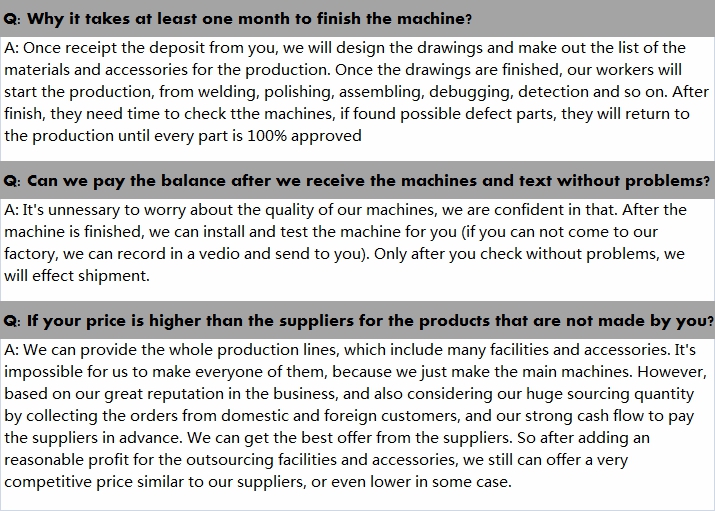

FAQ
